Product name：Sphincterotome

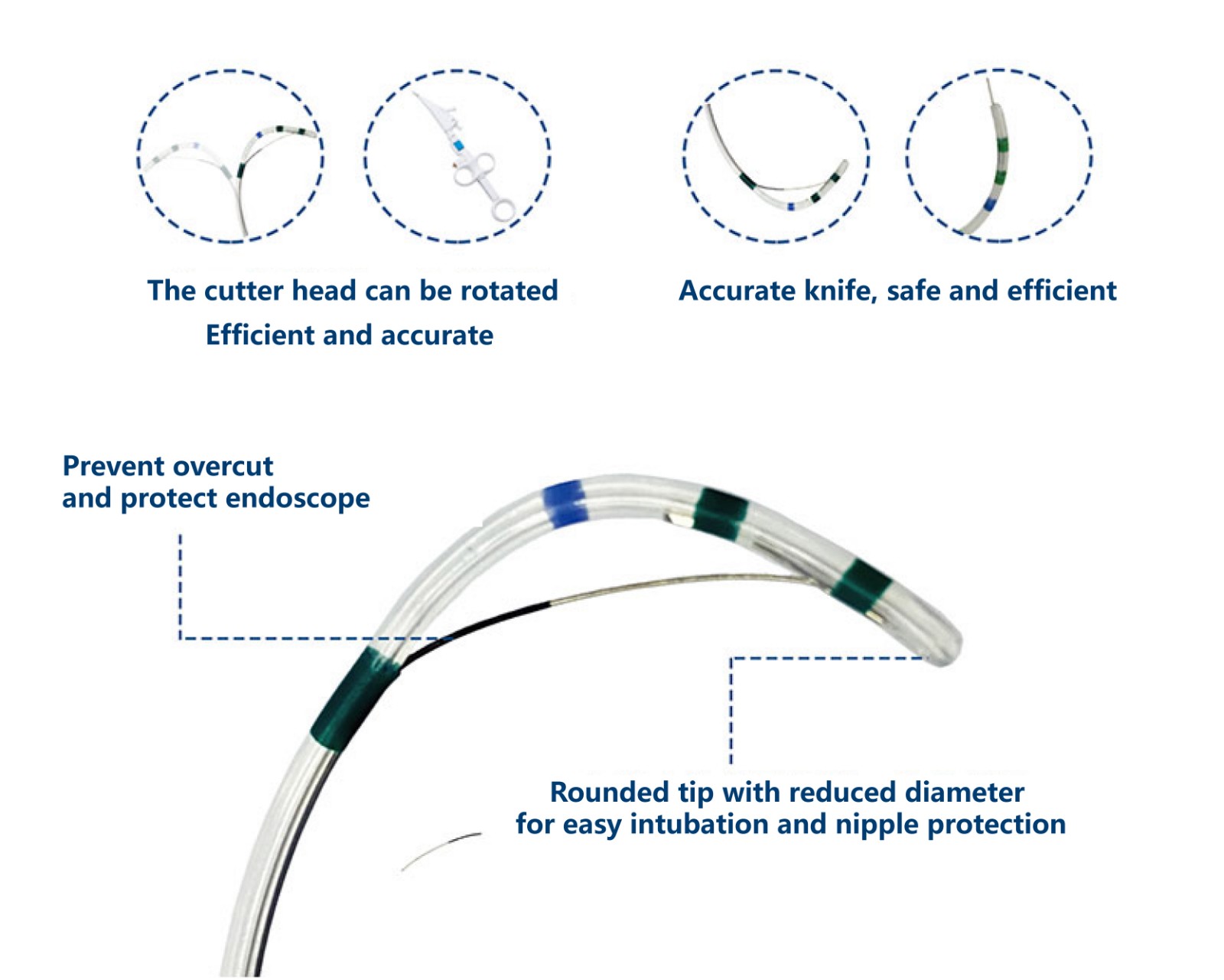

Product use： Used for endoscopic cannulation of the ductal system and for sphincterotomy. The tapered tip enables placement into small or tight orifices. DirecTip Technology enables the guidewire and contrast to be directed into the duct from the center of the tip,helping the physician inject contrast into the intended duct. The lsulation cut wire helps reduce the risk of over-cutting and protect the endoscopic channel. Rotatable handle application could optimize the adjustment of 11 o' clock angle before the intubation process.
Model | Order Number | Tip Length （mm） | Cutting Wire Length （mm） | Working Length （mm） | Rotatable or Not |
3-Lumen Tapering Tube | NM-RA-S-C-Q-L0520 | 5 | 20 | 2000 | Y |
| NM-RA-S-C-Q-L1520 | 15 | 20 | |||
| NM-RA-S-C-Q-L0525 | 5 | 25 | |||
| NM-RA-S-C-Q-L1525 | 15 | 25 | |||
| NM-RA-S-C-Q-L0530 | 5 | 30 | |||
| NM-RA-S-C-Q-L1530 | 15 | 30 | |||
| NM-RA-S-C-Q-L0535 | 5 | 35 | |||
| NM-RA-S-C-Q-L1535 | 15 | 35 | |||
3-Lumen Rapid Exchange Tube | WM-RA-S-E-Q-L0520-G | 5 | 20 | ||
| WM-RA-S-E-Q-L1520-G | 15 | 20 | |||
| WM-RA-S-E-Q-L0525-G | 5 | 25 | |||
| WM-RA-S-E-Q-L1525-G | 15 | 25 | |||
| WM-RA-S-E-Q-L0530-G | 5 | 30 | |||
| WM-RA-S-E-Q-L1530-G | 15 | 30 | |||
| WM-RA-S-E-Q-L0535-G | 5 | 35 | |||
| WM-RA-S-E-Q-L1535-G | 15 | 35 | |||
| 3-Lumen with Needle | NM-FN-S-C-Q-L0505 | 5 | 5 | N |
